Table of Contents

TRAINING, SOFTWARE, & STUDIES

Dryer Software

  • PEDCO’s Adsorptive Gas Dryer Software simulates the performance of Thermal Swing, Pressure Swing and Non-regenerated dryers.
  • The program solves the system of conservation equations of mass, momentum, and energy relative to the dryer design specified by the user.

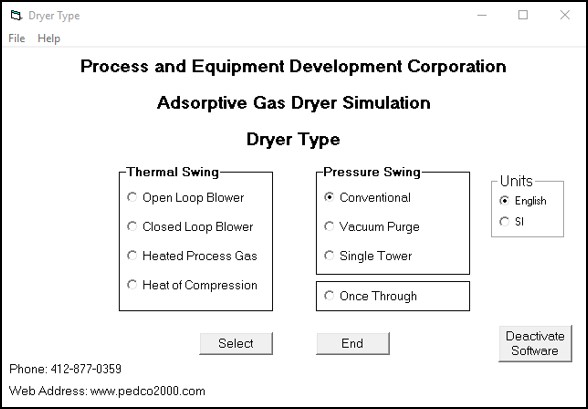

Dryer Software Dryer Type
  • Data is entered into intuitively designed windows forms.
  • In house and site data has been used to validate simulated data.

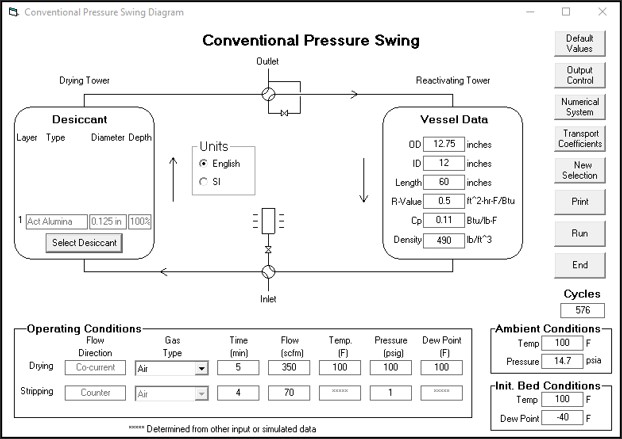

Dryer Software Flow Diagram

Dryer Training

  • Training is offered for use of the Adsorptive Gas Dryer software.
  • Training is offered to explain the fundamentals of adsorptive dryers and explain the classical sizing procedures.
  • Psychometrics or psychometry is are terms used to describe the field of engineering concerned with the determination of physical and thermodynamic properties of gas-vapor mixtures.
  • A good reference is American Society of Heating, Refrigerating, and Air-Conditioning Engineers’ (ASHRAE) Handbook of Fundamentals.

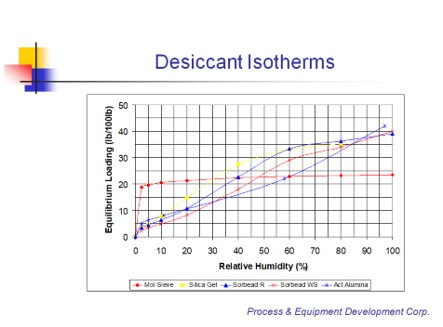

Dryer Training Desiccants

Air Brake Supply System Simulation for Commercial Vehicle Equipment Manufacturer

  • PEDCO creates custom software to design and simulate process equipment.

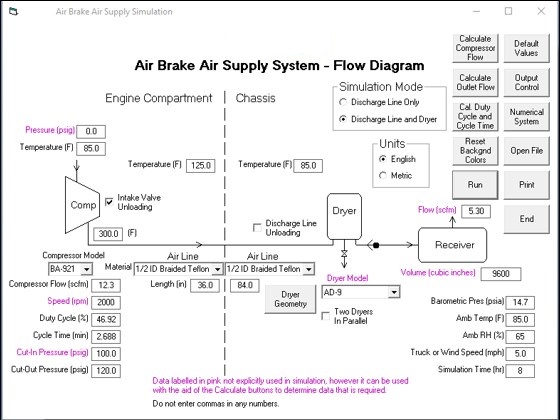

Air Brake Air Supply Simulation

Dryer Analysis for Biological Agent Warning System for Defense Contractor

  • Moisture Diffusion Modeling Required
  • System Start up in 15 minutes

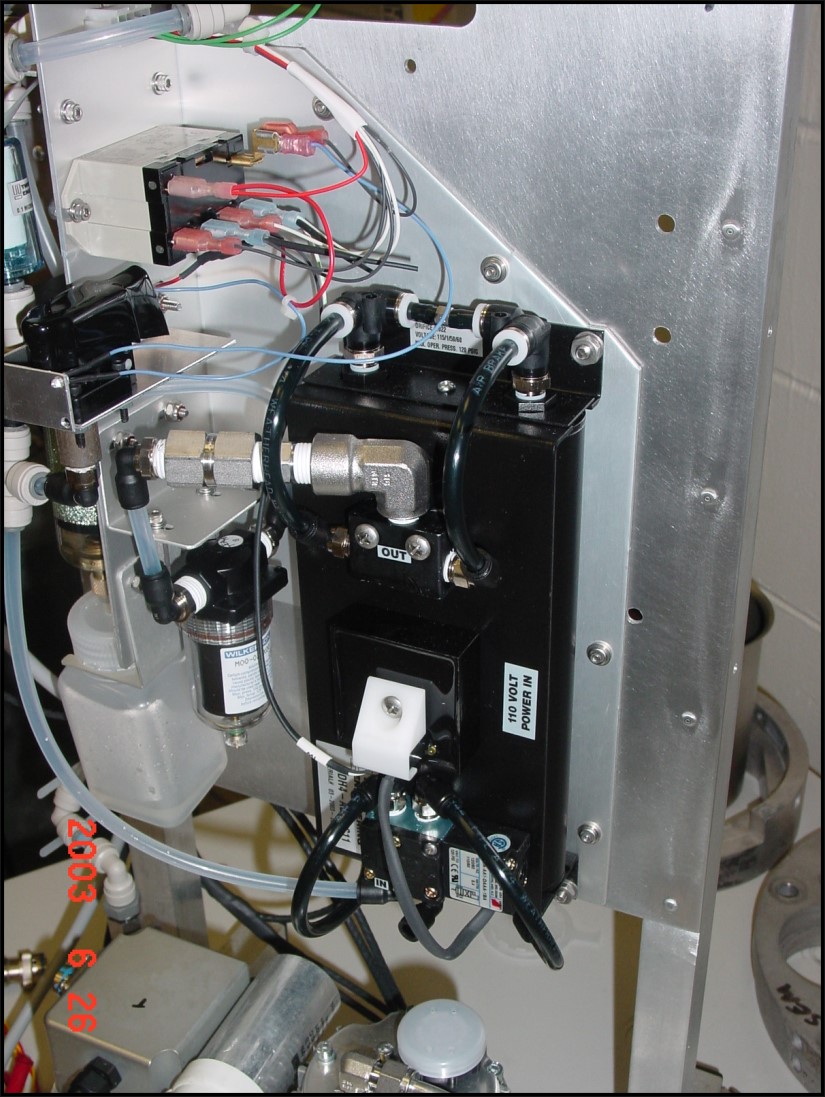

Biological Agent Warning System Dryer

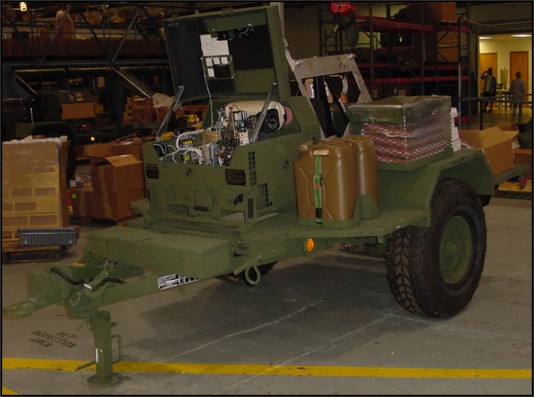

Biological Agent Warning System

Engineering Study for the Wave Guide Air Supply System for Phalanx Program Defense Contractor​

  • Wave Guide Purge Air Dryer Analysis

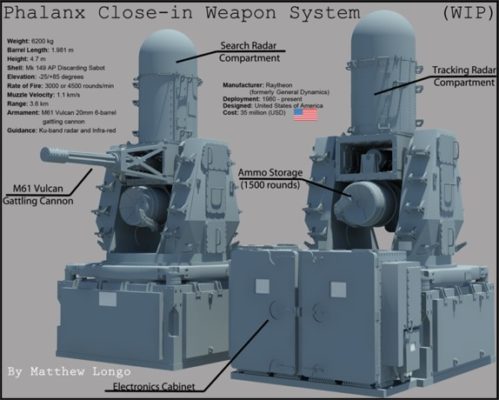

Laser Wave Guide Purge Dryer

DESICCANT DRYERS

100,000+ scfm Wind Tunnel Dryer Regen System Upgrade for Government Research Facility​

  • Process flow diagrams
  • 3D scale model
  • Process calculations

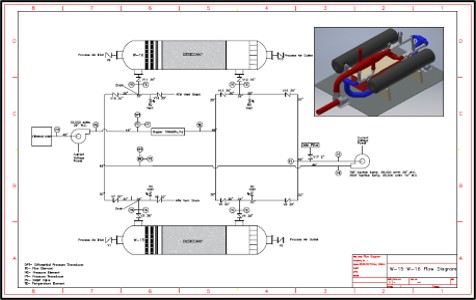

Dryer Regen System Flow Diagram
  • Instrumentation and component specifications
  • Sequence of operations manuals
  • Start up and verification testing of dryer
Dryer Regen System 3D Model

Ultra-Low Dew Point Heated Dryer

  • Process Flow Diagram
  • General Arrangement 3D Model
  • Process Calculations

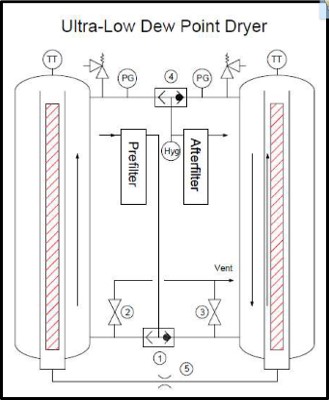

Ultra Low Dew Point Dryer Flow Diagram
  • Built to customer strict specifications (long list of materials not permitted)

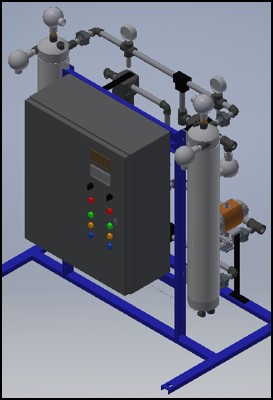

Ultra Low Dew Point Dryer 3D Model

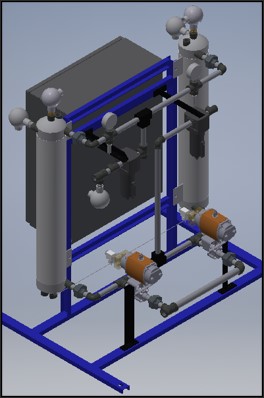

Ultra Low Dew Point Dryer 3D Model (2)
  • Control Logic Drawings
  • General Arrangement Drawings

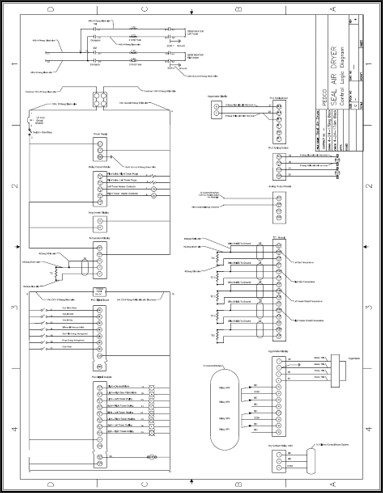

Ultra Low Dew Point Dryer Logic Diagram

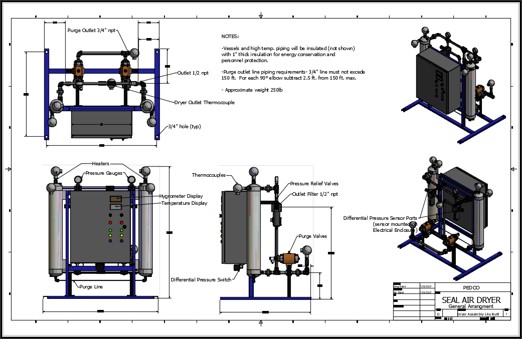

Ultra Low Dew Point Dryer General Arrangement
  • -120F PDP @ 100psi
  • Internally heated dryer
  • Shop tested
  • PLC programming

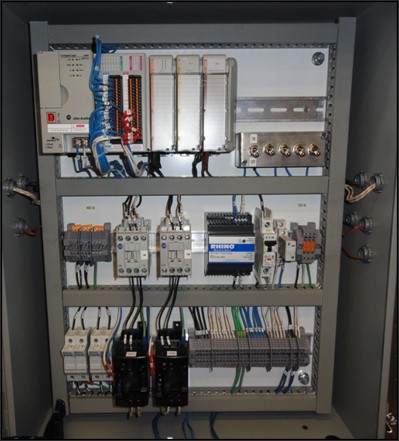

Ultra Low Dew Point Dryer Electrical Enclosure

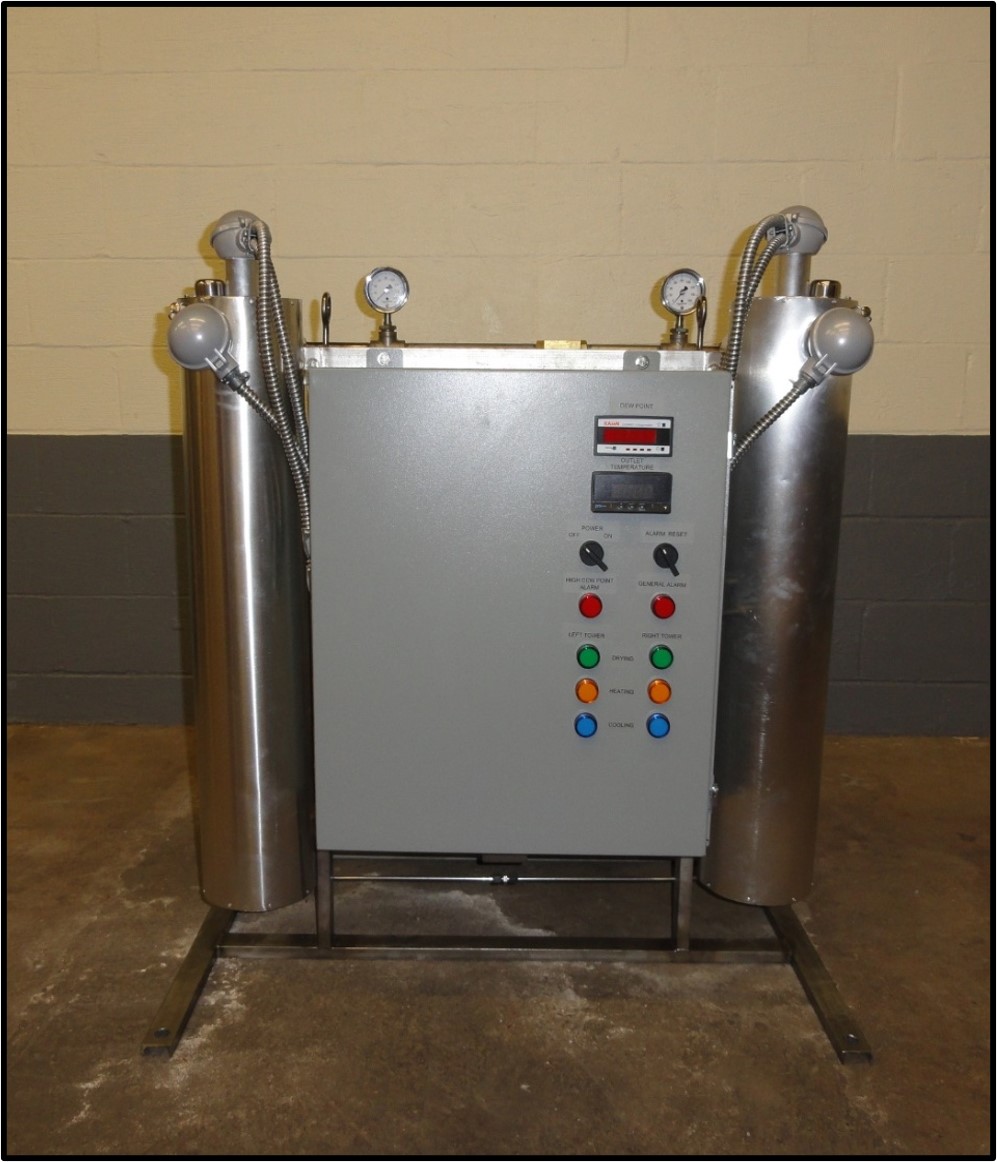

Ultra Low Dew Point Dryer

Split Stream Argon Gas Dryer

  • Argon Gas
  • 700 scfm at 580 psig
  • Process Calculations
  • Equipment Sizing
  • General Arrangement 3D Model
  • Venturi Flow Element Design
  • Instruction Manual Preparation

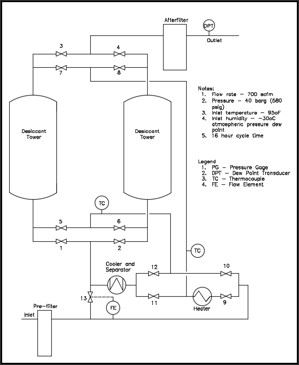

Split Stream Dryer Flow Diagram

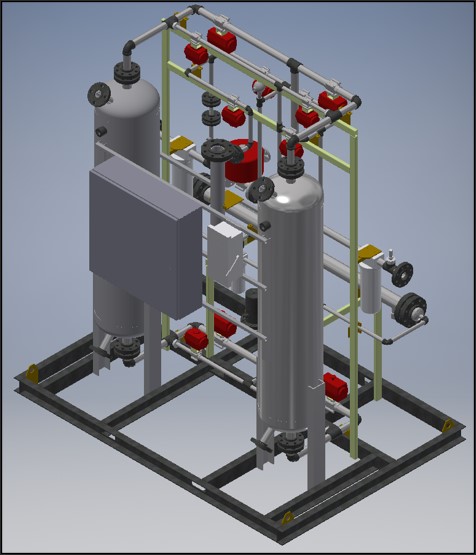

Split Stream Dryer 3D Model
  • PLC Programming
  • PLC Touch Screen
  • Shop Testing
  • PID Tuning
Split Stream Dryer Touch Screen

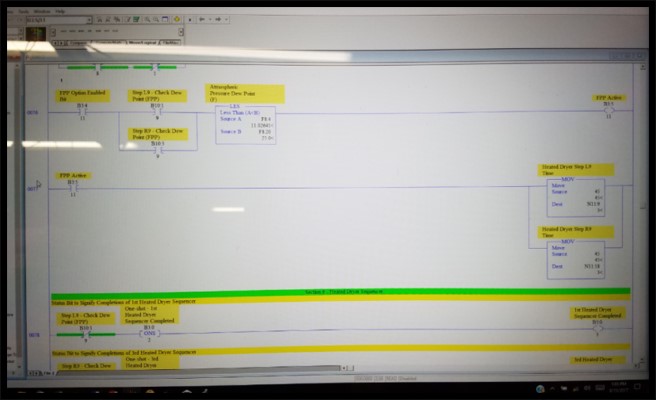

Split Stream Dryer PLC Program

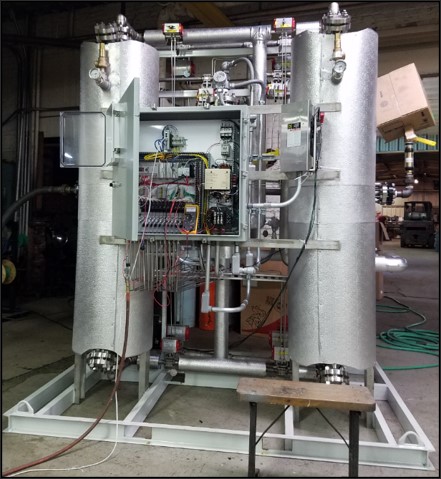

Split Stream Dryer

New Propulsion Wind Tunnel Dryer for Government Research Facility

  • 320,000 scfm at atmospheric pressure
  • Process calculations
  • Owner’s Engineer
  • Proposal Reviews

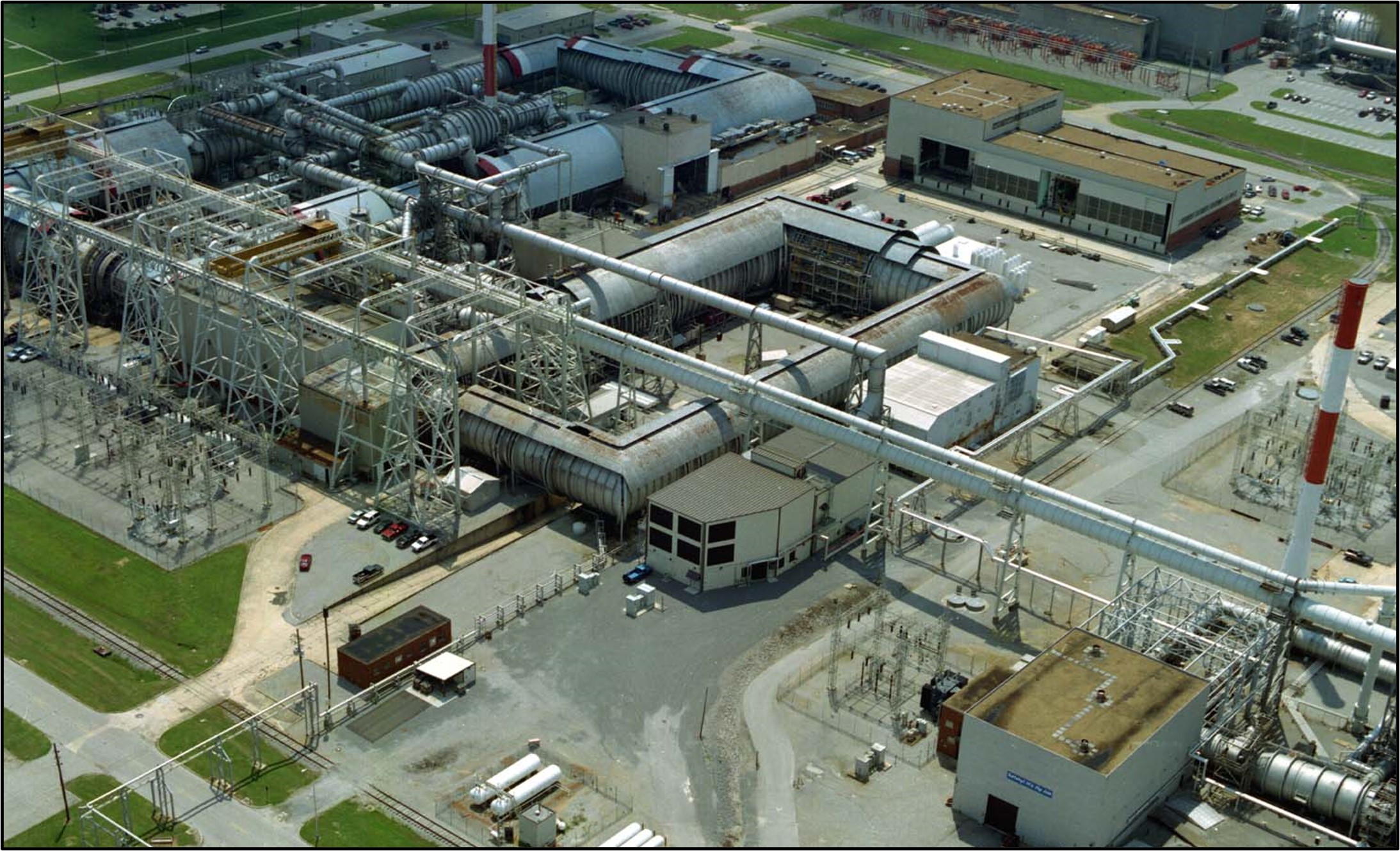

Propulsion Wind Tunnel Dryer

Desiccant Wheel Dryers for Government Research Engine Test Facility – Witness Shop Test​

  • 40,000 scfm at atmospheric pressure
  • -43°F dew point, 0.5 gr/lbair
  • Witness shop test for Government Research Engine Test Facility

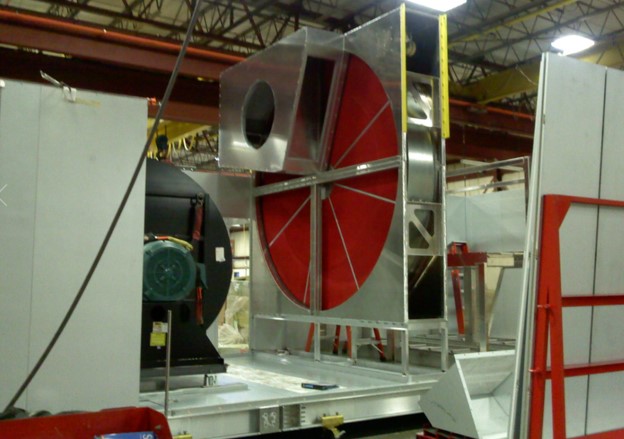

Desiccant Wheel Dryer

Compressed Natural Gas Dryer

  • Process calculations
  • Regen blower package design

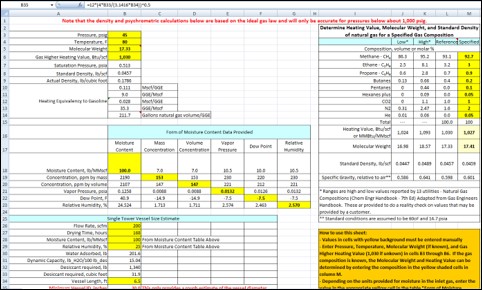

Compressed NG Dryer Sizing Spreadsheet

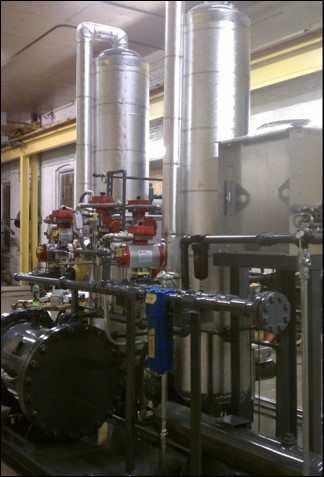

Compressed NG Dryer

Transonic Dynamic Tunnel (TDT) Dryer for Government Research

  • 4,250 scfm, -2.6 psig, -40°F dew point
  • Includes precooler to lower temperature to desiccant bed to 50°F
  • Unique design required to enable equipment to be lowered between building and wind tunnel ducting
  • Regeneration system, 1,300 scfm, 30 hp blower, 120 kW heater
  • Condensing unit constructed from components including 110 hp screw compressor, water cooled condenser, controls, accumulators and receiver

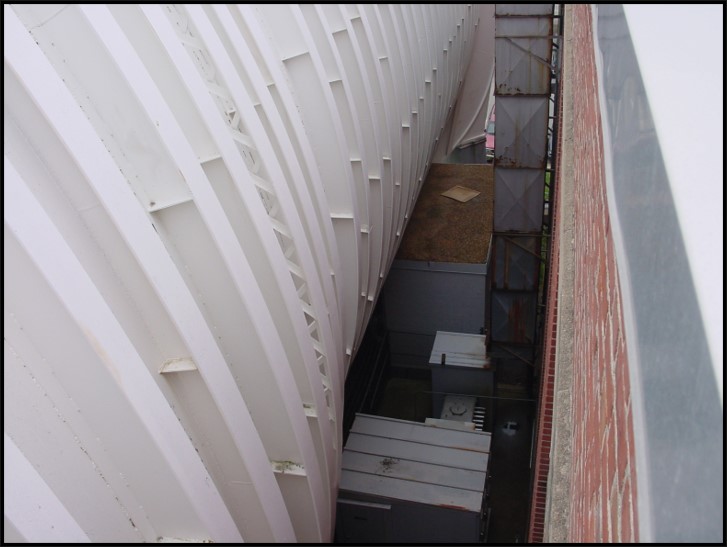

Transonic Dynamic Wind Tunnel Dryer Access
Transonic Dynamic Wind Tunnel Dryer Desiccant Vessels

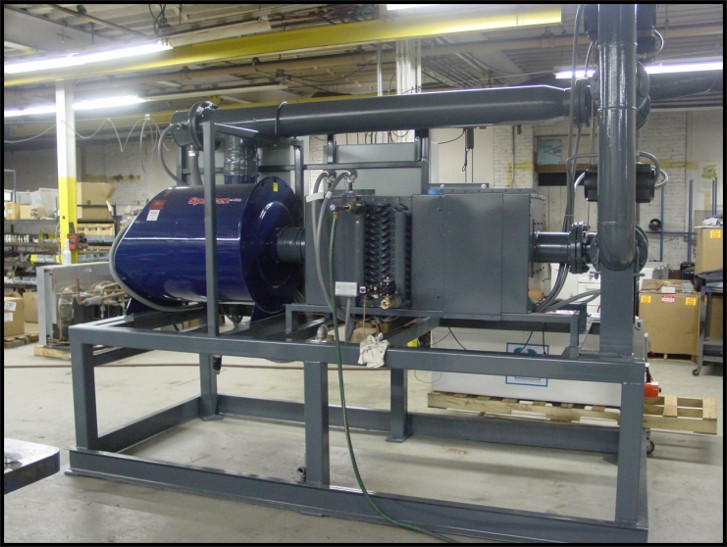

Transonic Dynamic Wind Tunnel Dryer Regen Skid
Transonic Dynamic Wind Tunnel Dryer Precooler Refrigeration Skid

Nitric Oxide Pilot Plant Dryer

  • Fluid – nitric oxide gas
  • Flow rate – 0.75 – 1.5 scfm
  • Pressure – 1.5 psig
  • Designed, constructed, and tested in Pedco’s shop

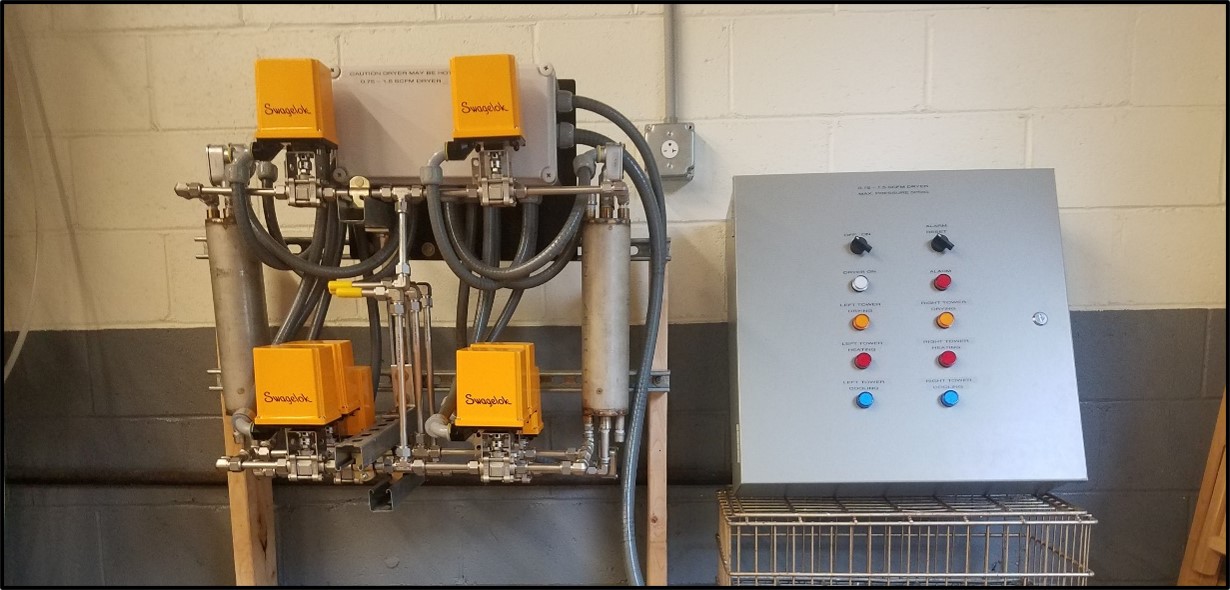

Nitric Oxide Pilot Dryer

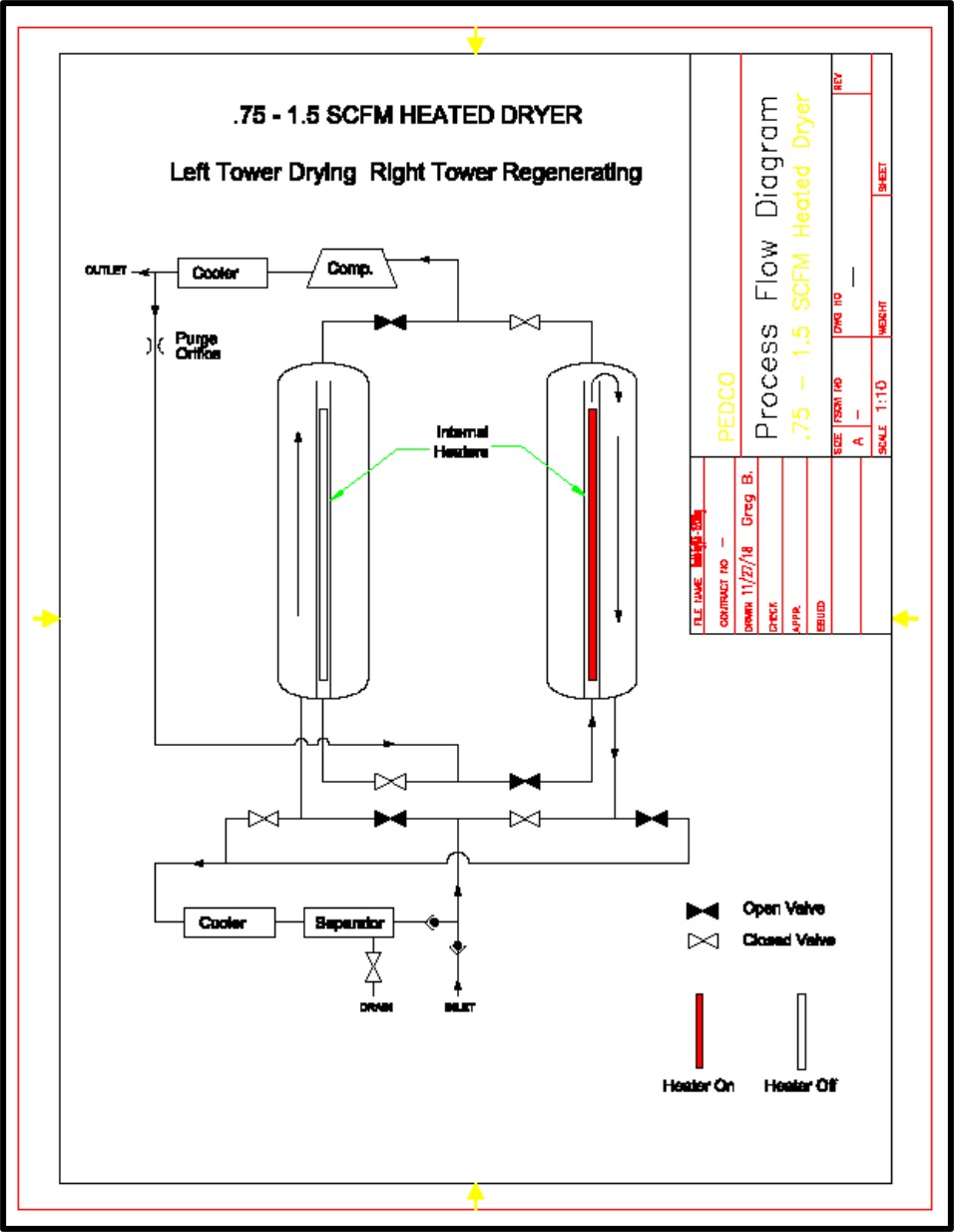

Nitric Oxide Pilot Dryer Flow Diagram

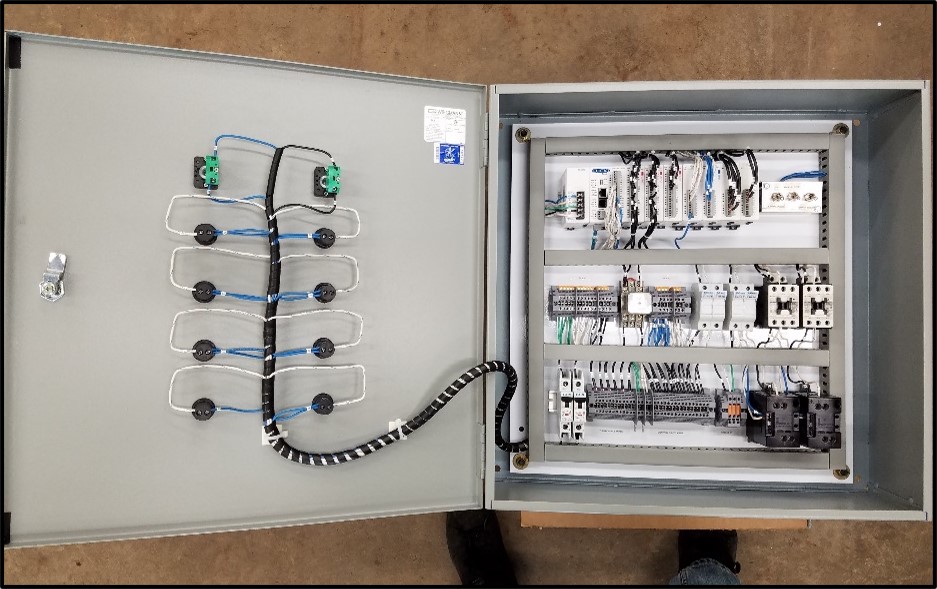

Nitric Oxide Pilot Dryer Control Box

Nitric Oxide Commercial Dryer

  • Fluid – nitric oxide gas
  • Flow rate – 82 scfm
  • Pressure – 75 psig

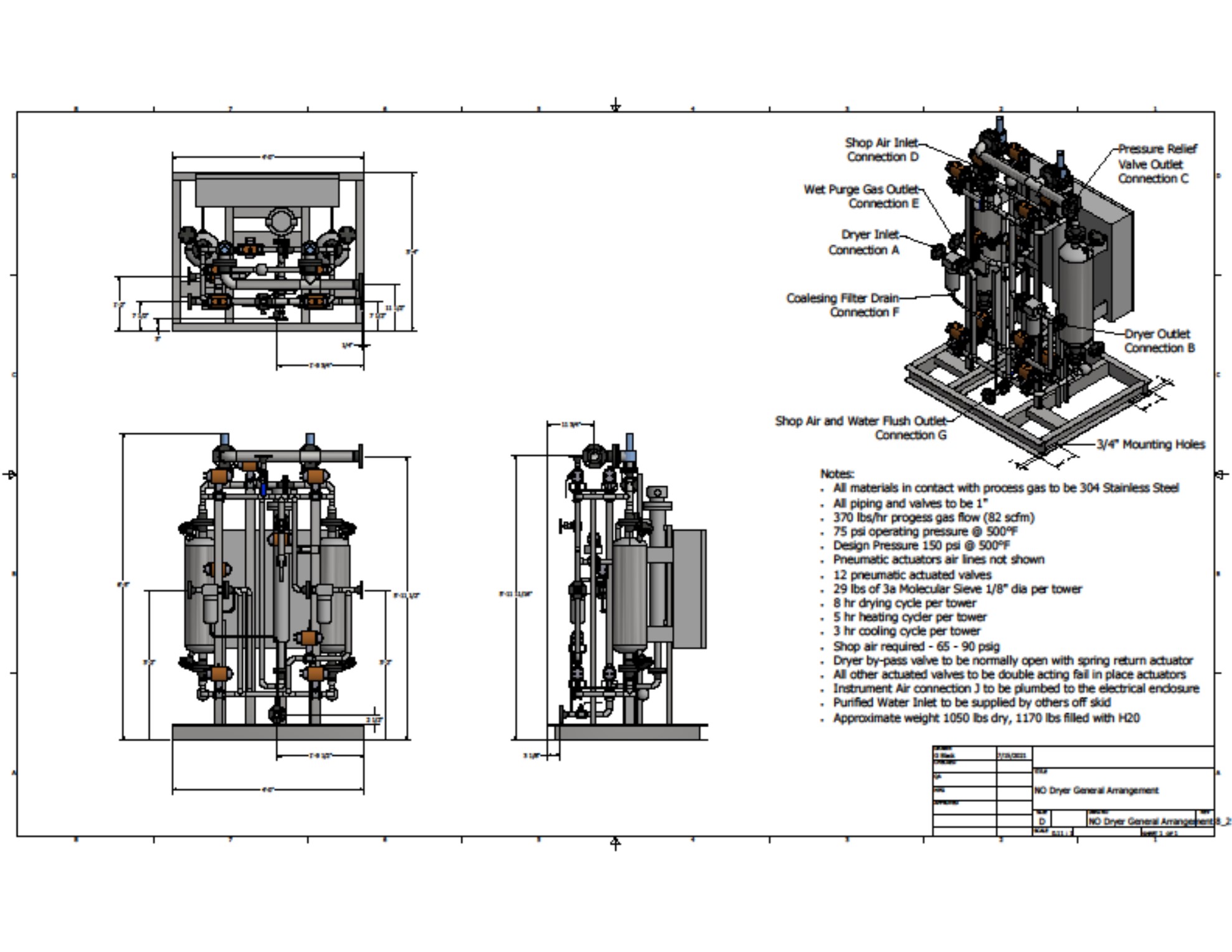

Nitric Oxide Dryer General Arrangement

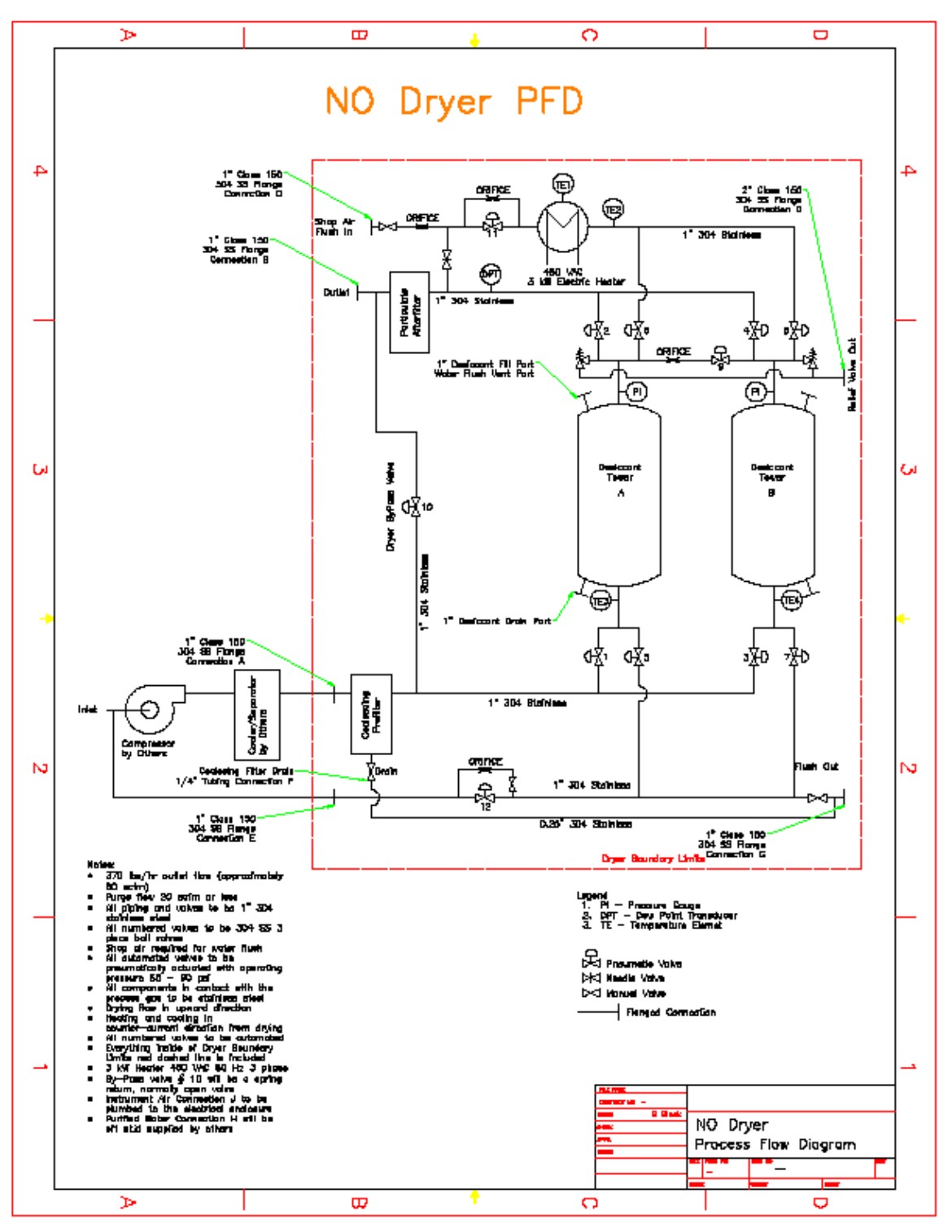

Nitric Oxide Dryer General Arrangement

REFRIGERATED DRYERS

Low Pressure Cooler/Dryer

  • 650 scfm
  • 4 psig
  • Precooler for dual tower desiccant dryer
  • 8.5 hp scroll compressor
  • Hot gas bypass capacity control

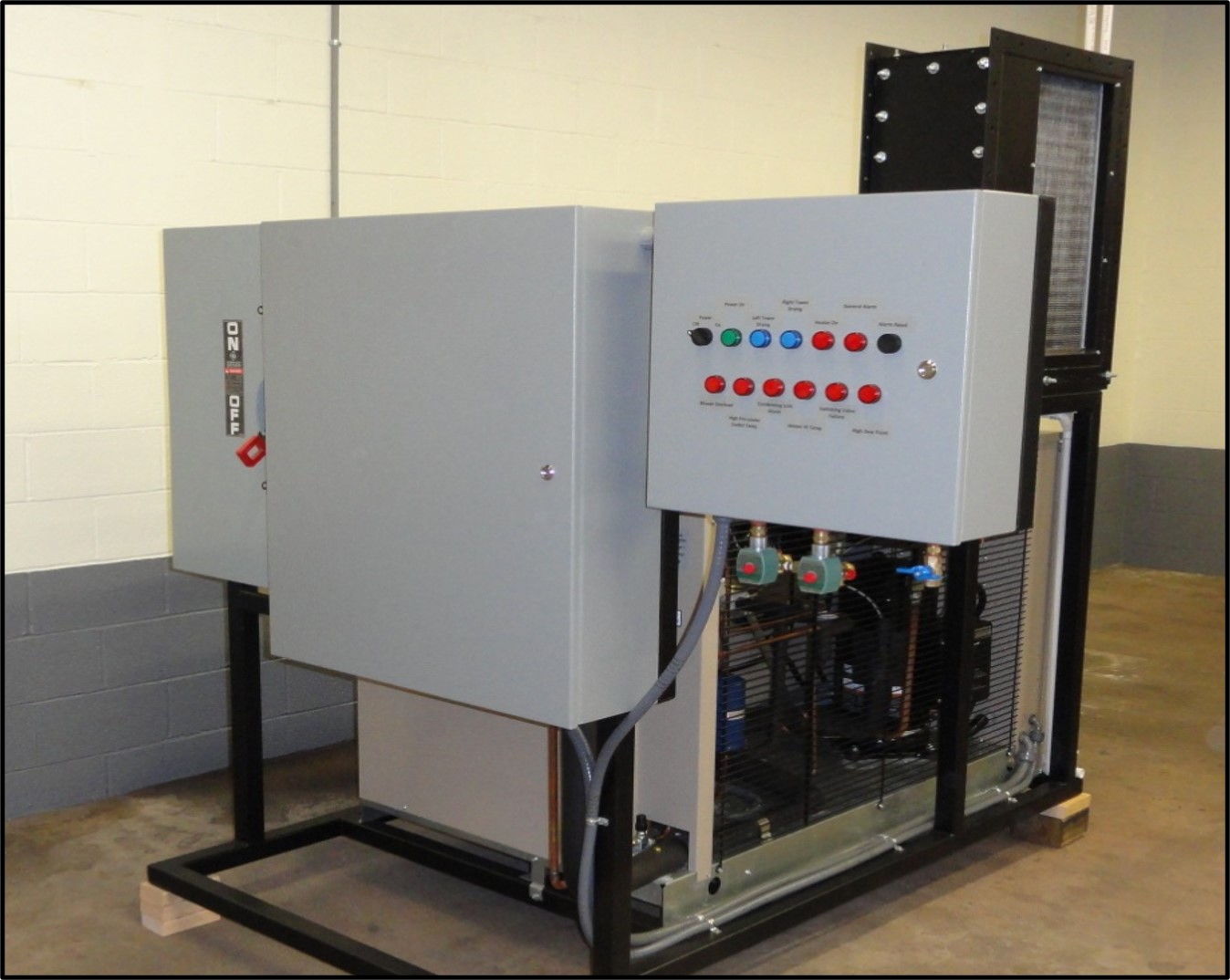

Low Pressure Refrig Dryer
  • PFD Drawings
  • Electrical  Control Logic Schematics
  • PLC Programming

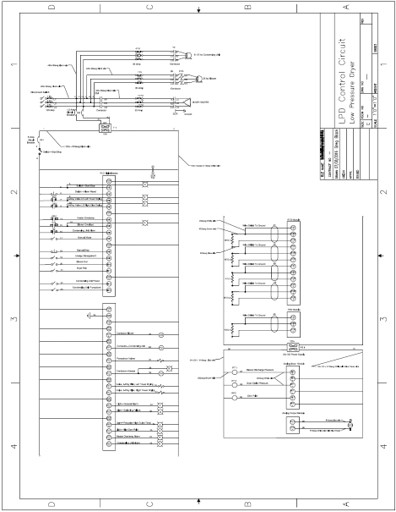

Low Pressure Refrig Dryer Control Logic

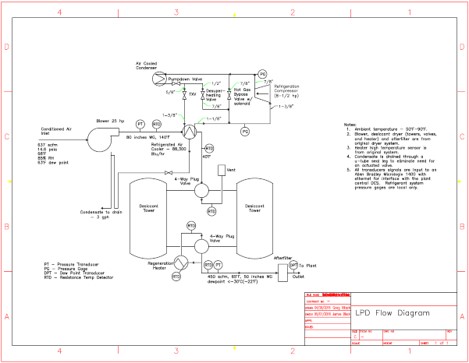

Low Pressure Refrig Dryer Flow Diagram
  • New Electronics, Refrigeration Unit, Fabricated Coil Housing (to match existing flanges) and Instrumentation
  • Skid mounted and designed to integrate with existing dryer

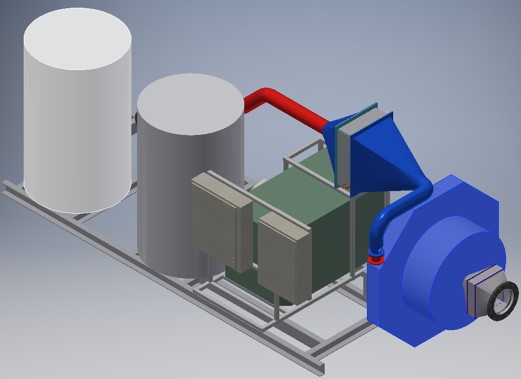

Low Pressure Refrig Dryer 3D Model

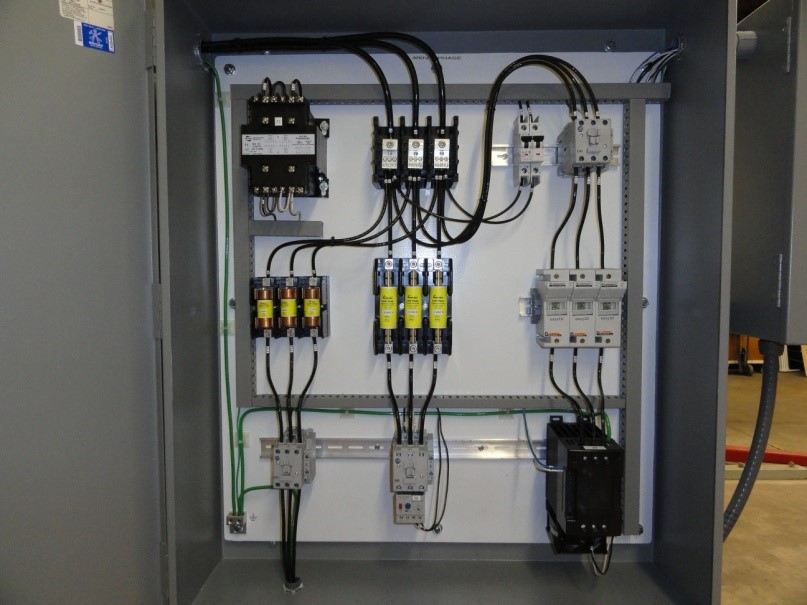

Low Pressure Refrig Dryer Power Enclosure
Low Pressure Refrig Dryer PLC Enclosure

Large Refrigerated Dryers with Shell-and-Tube Heat Exchangers​

  • Uses shell-and-tube heat exchangers
  • Flow rate – 3,000 scfm
  • Pressure – 100 psig
  • Inlet temp – 100°F
  • 15 hp water cooled condensing unit with reciprocating compressor

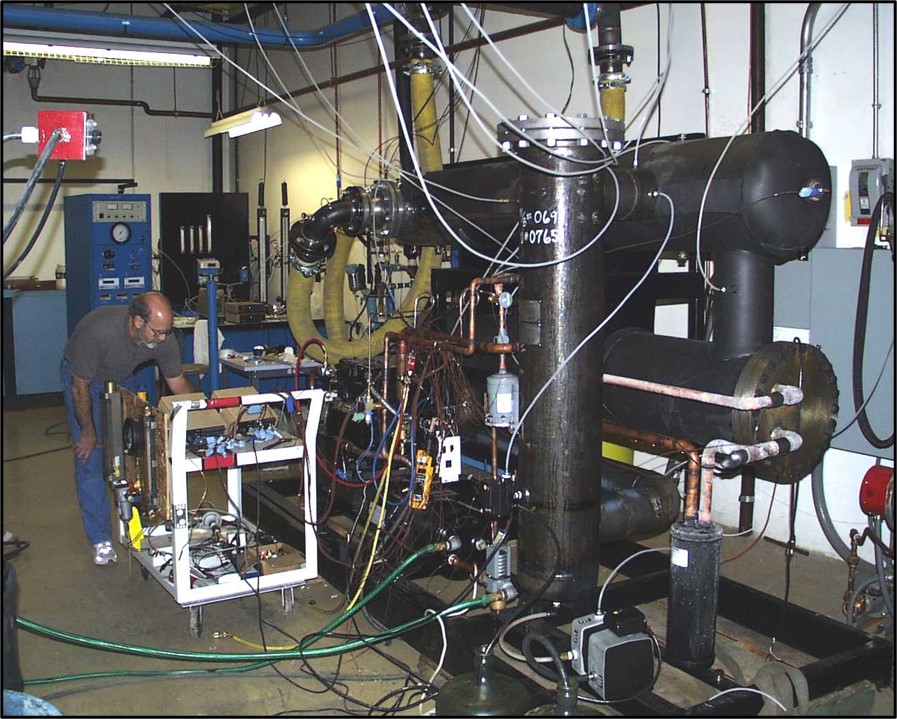

Industrial Refrig Dryer Test Setup
  • Shell-and-tube air-to-air heater exchanger bundle
  • Shell and tube heat exchanger with single segmented baffles
  • Low finned tubes
  • Twisted tape turbulator for heat transfer enhancement

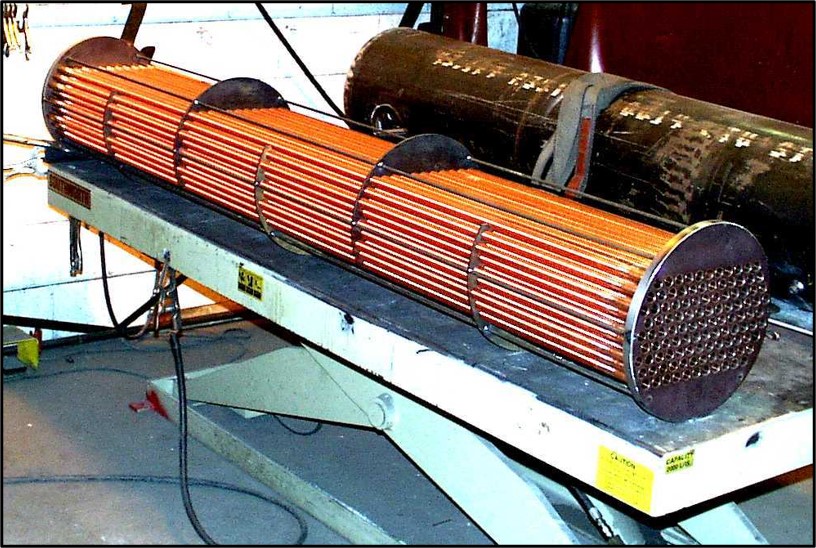

Shell and Tube Heat Exchanger Bundle

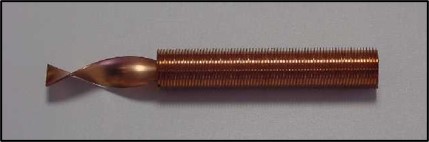

Extended Surface Heat Transfer Tube with Turbulator

Large Refrigerated Dryer with Remote Condensing Unit

  • 10,000 scfm
  • 100 psig
  • 130°F Inlet Temperature
  • 40°F pressure dew point

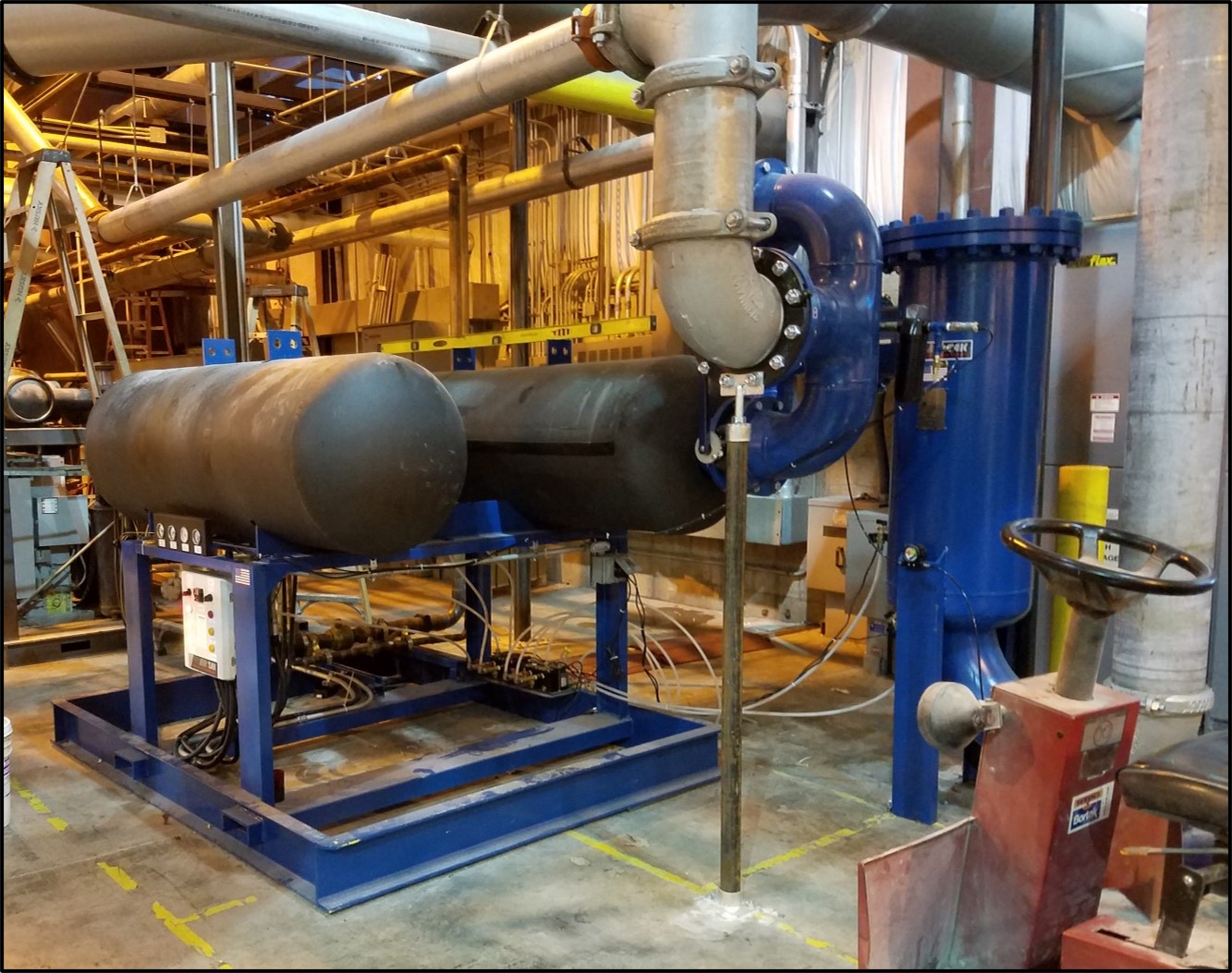

Industrial Refrig Dryer with Remote Condensing Unit
  • Packaged air-cooled condensing unit
  • Condensing unit located 350 feet from air end

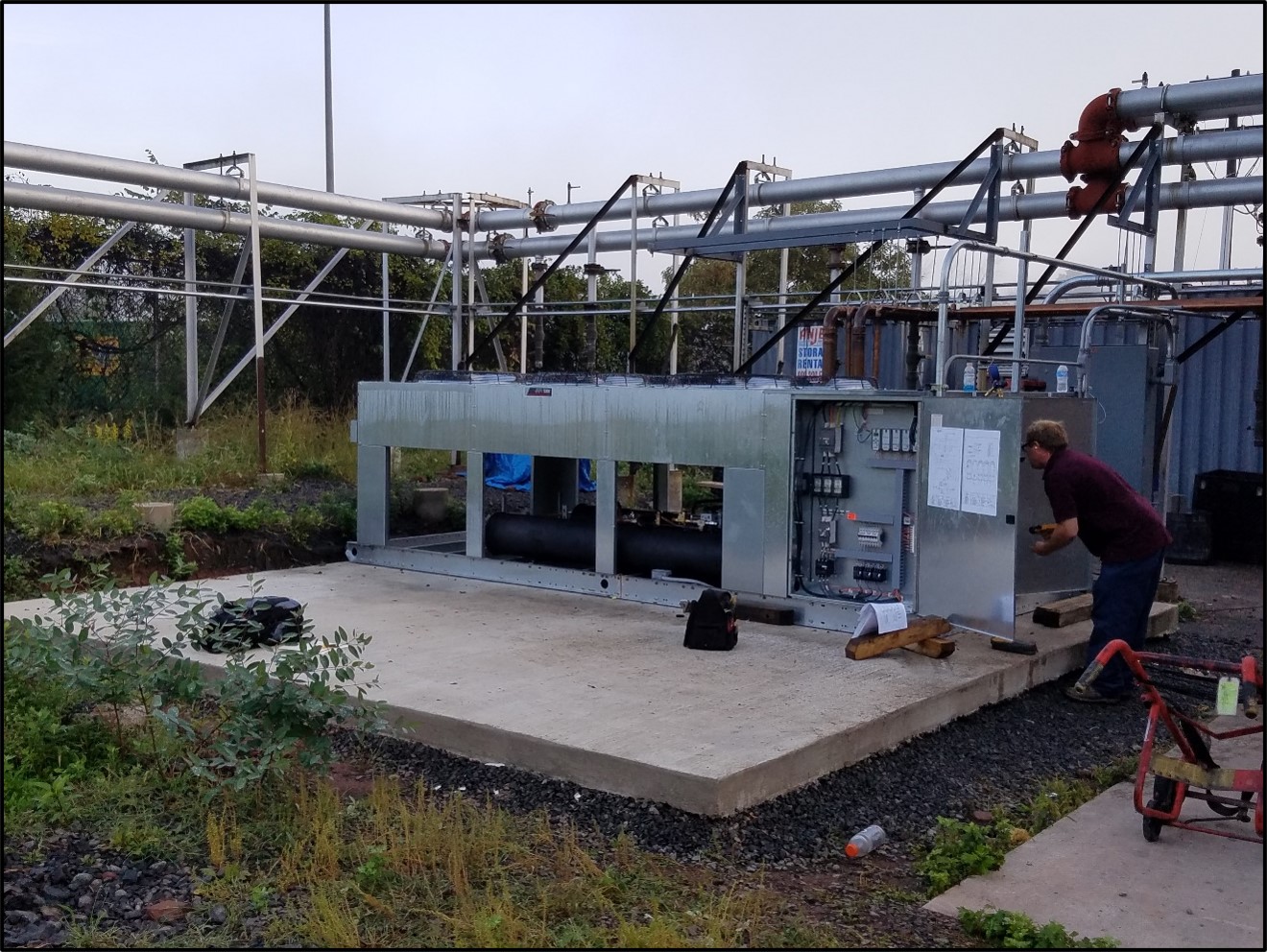

Industrial Refrig Dryer Remote Condensing Unit

ADSORPTION SYSTEMS

Nitrogen Generator

  • Process Calculations
  • Equipment sizing
  • Instrumentation Specs.
  • Shop testing

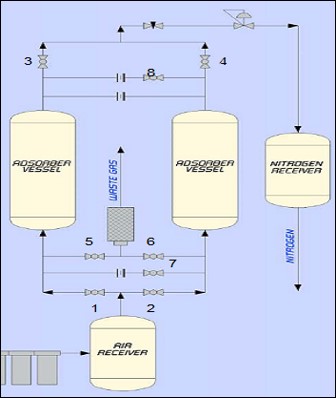

Pressure Swing Adsorption N2 Generator Flow Diagram

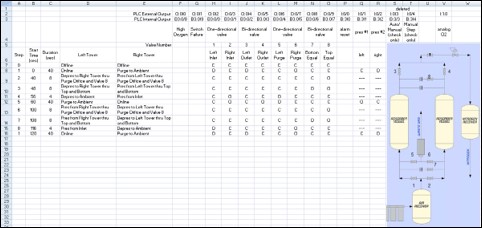

Pressure Swing Adsorption N2 Generator Valve Sequence Matrix

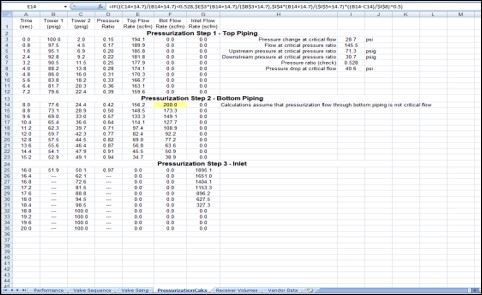

Pressure Swing Adsorption N2 Generator Pressure Profiles

Siloxane Adsorption Bed Sizing

  • Sizing spreadsheet developed based on breakthrough data of Niessner

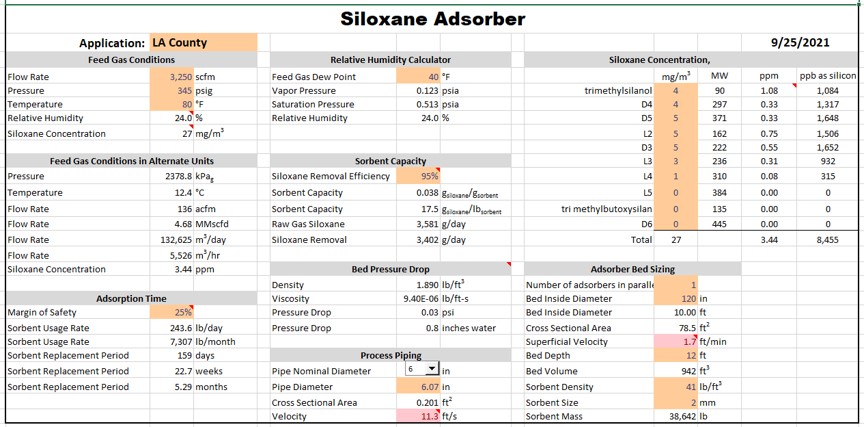

Siloxane Adsorber Sizing Spreadsheet

CO2 Adsorption System​

  • Layered bed is used.
  • Activated alumina on bottom reduces PDP to -40°F or lower.
  • Molecular sieve at top reduces CO2 concentration from 400 ppm to as low as 1 ppm.
  • Regeneration – open loop countercurrent heating and closed-loop co-current cooling.
CO2 Adsorption System Flow Diagram

MASS TRANSFER EQUIPMENT

Saturator for Test Booth for Compressed Air Treatment Manufacturing Company

  • Flow rate – 3,000 scfm
  • Pressure – 100 psig
  • Capability to heat and humidify air with 35°F PDP from 70°F to saturated air at 100+1°F.
  • Capability to cool and saturate air with minus 40°F PDP from 130°F to saturated air at 100+1°F.

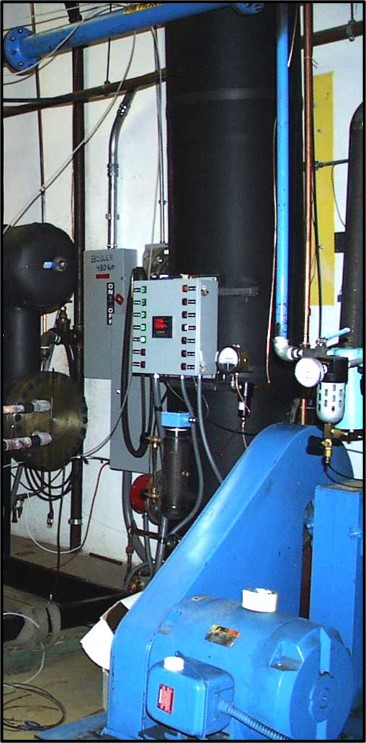

Compressed Air Saturator (2)

Compressed Air Saturator for Compressed Air Treatment Manufacturing Company

  • Process calculations
  • Material selection
  • Instrumentation and controls design
  • Project management
  • Instruction manual

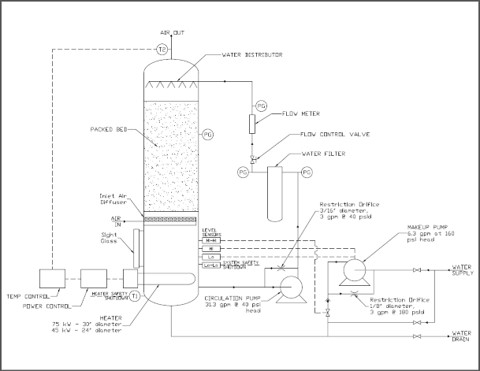

Compressed Air Saturator Flow Diagram

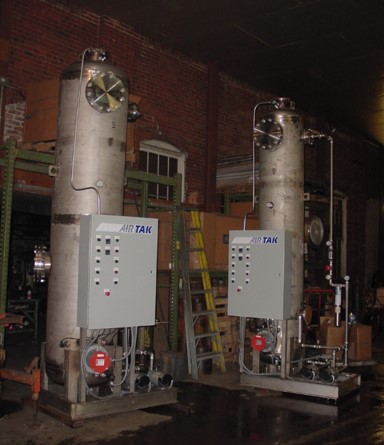

Compressed Air Saturator
